Coming Soon

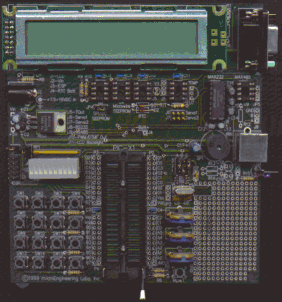

PIC-X1 Experimenters Lab Board

The new PIC-X1 is our first pre-assembled experimenter's platform. While our PICProto boards allow you to create your own projects with a minimum of hassle, the PIC-X1 goes one step further. It provides an assembled testbed containing most of the circuitry commonly used with PICmicros. These include keypad entry, LCD and LED displays, RS232 and RS485 interfaces, serial EEPROMS, sound, a programmable oscillator and more. A prototyping area is also included in case we missed your favorite circuit. The PIC-X1 will be available in April.

Features:

• 2 line by 20 character LCD
• LED bargraph
• 16-key keypad (4x4 matrix)
• RS232 interface
• RS485 interface
• I2C SEEPROM
• Microwire SEEPROM
• SPI SEEPROM
• Real-time clock
• Temperature sensor (3-wire and 1-wire)
• 2 servo connectors
• DTMF/PWM RCs
• IR module in
• IR LED out
• 3 potentiometers
• Speaker
• Oscillator jumper-selectable 4-20mhz
• Reset button
• In-circuit serial programming connector
• 5-volt power supply
• 40-pin ZIF socket
• Prototyping area
• 5.5" x 5.6"

Available as:

• Kit with parts
• Assembled and tested

Pricing to be announced.

Shipping April '99.
