PICProto prototyping boards are designed to help you get your PICmicro projects up and running faster and easier. There is a high-quality blank PICProto board for most every PICmicro microcontroller. Each double-sided board has a solder mask on both sides and hundreds of plated-through holes for your parts.
The PICmicro I/O pins are brought to the edge of a large prototyping area and labeled for quick identification. Each PICProto board is pre-wired to hold your favorite PICmicro, 5-volt regulator, capacitors and the oscillator crystal, RC or ceramic resonator. At the bottom edge of each board is a place for a DB9-25 RS232 style connector. A documentation sheet is included showing suggested parts and placement and a schematic.
Thousands of our inexpensive PICProto boards are making life easier for PICmicro developers all over the world.

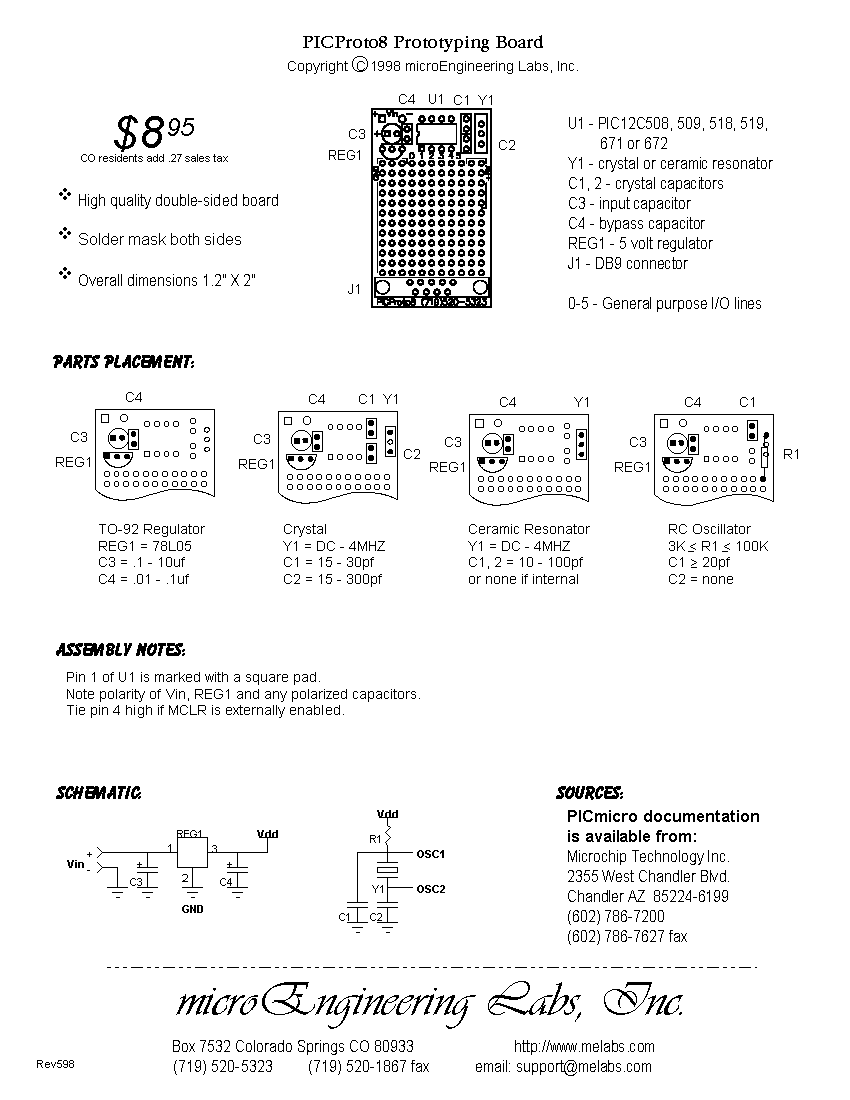

PICProto8 - $8.95
For the new 8-pin PIC12C508(A), 509(A), 671, 672, PIC12CE518, 519, 673 and 674 microcontrollers. 1.2" x 2". View documentation.

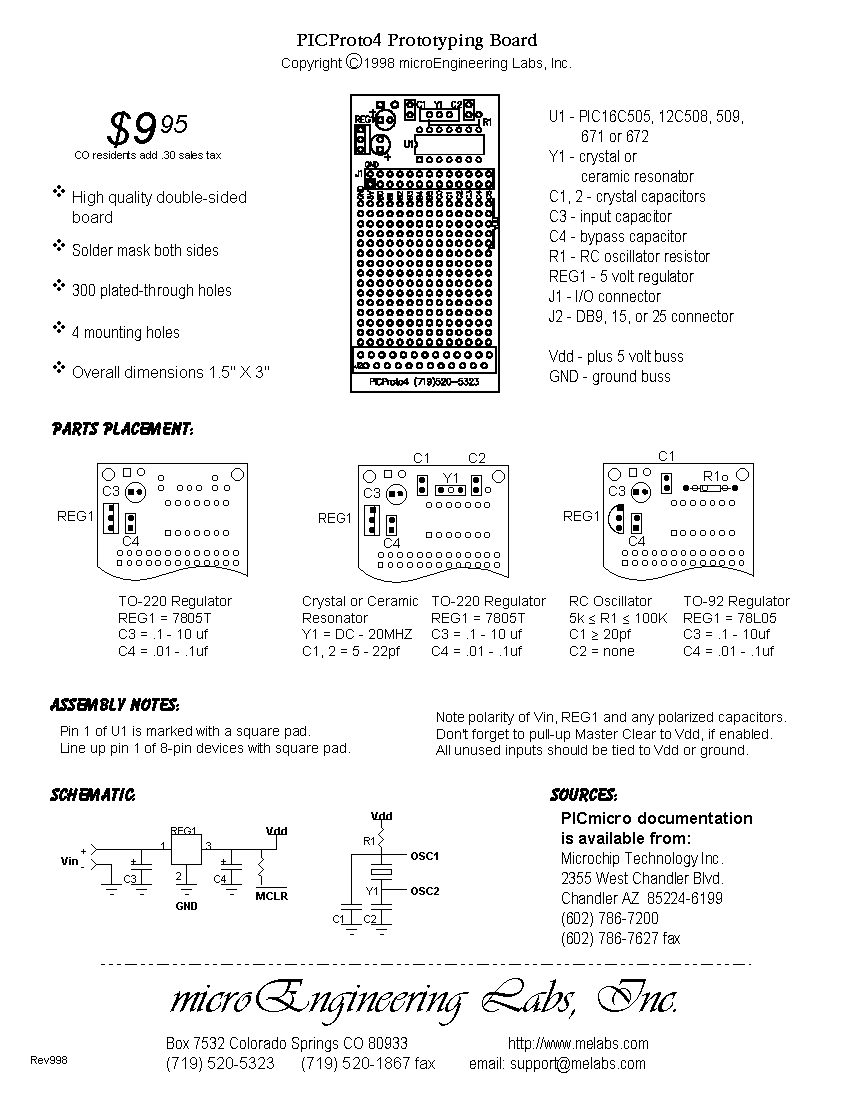

PICProto4 - $9.95
For the new 14-pin PIC16C505 and the 8-pin PIC12C508(A), 509(A), 671, 672, PIC12CE518, 519, 673 and 674 microcontrollers. 1.5" x 3". View documentation.
PICProto18 - $9.95
For all 18-pin PICmicro microcontrollers including the PIC16C52, 54, 56, 58, 554(A), 556(A), 558(A), 61, 620(A), 621(A), 622(A), 71, 710, 711, 715, 84, PIC16CE623, 624, 625, PIC16F83 and 84(A). 1.5" x 3". View documentation.

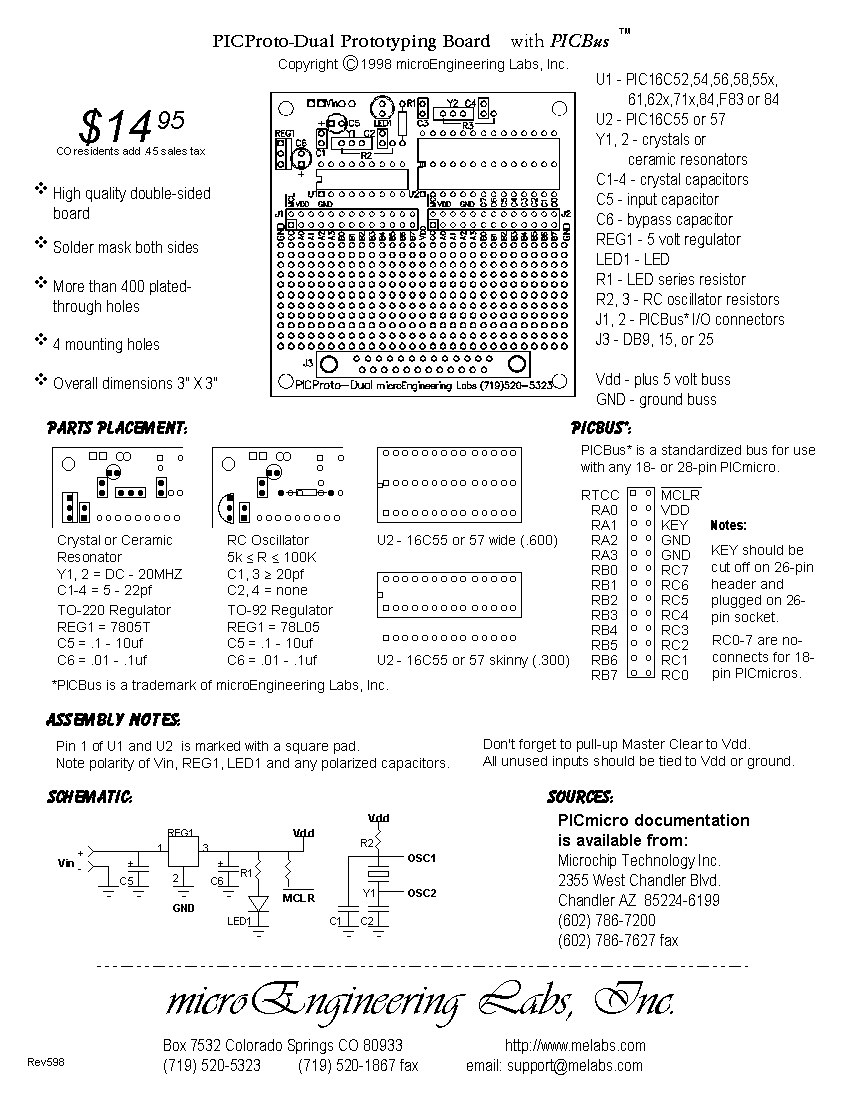

PICProto-Dual - $14.95
Supports all of the above listed 18-pin PICmicros as well as the 28-pin PIC16C55 and 57. It measures 3" x 3" and will accept either the standard .6" 28-pin device or the .3" skinny dip. (For the newer 28-pin mid-range PICmicros, see the PICProto3 and PICProto14 below.) View documentation.
PICProto3 - $14.95
For the 28-pin PIC16C62(AB), 63(A), 641, 642, 66, 72(A), 73(AB), 76, 773, PIC16F873 and 876 mid-range PICmicros. 3" x 3". View documentation.
PICProto14 - $14.95
For the 28-pin PIC14C000. 3" x 3". View documentation.
PICProto64 - $16.95
For the 40-pin PIC16C64(A), 65(AB), 661, 662, 67, 74(AB), 77, 774, PIC16F874 and 877 PICmicros. 3" x 4". View documentation.
PICProto17 - $17.95
For the 40-pin PIC17C42(A), 43 and 44 PICmicros. 3" x 4". View documentation.

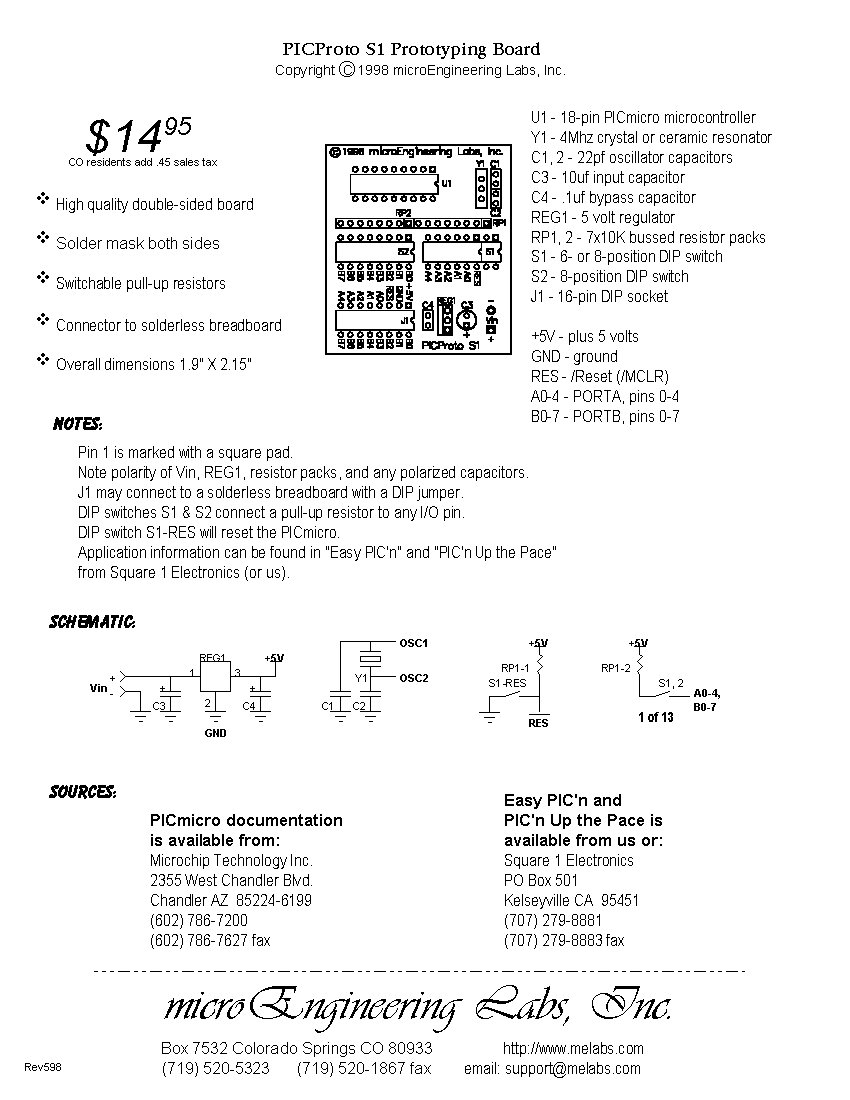

PICProto S1 - $14.95
For working with the circuits in "Easy PIC'n" and "PIC'n Up the Pace". Holds 18-pin PICmicro, oscillator, 5-volt power supply, DIP switches and socket to solderless breadboard. 1.9" x 2.15". View documentation.
